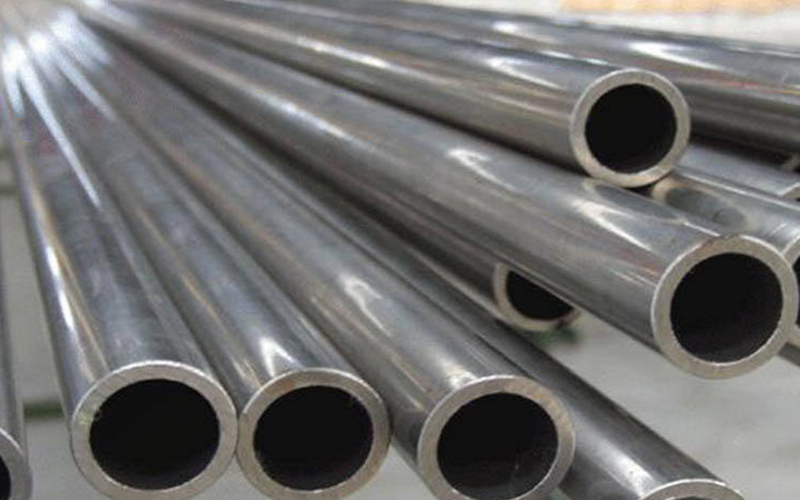

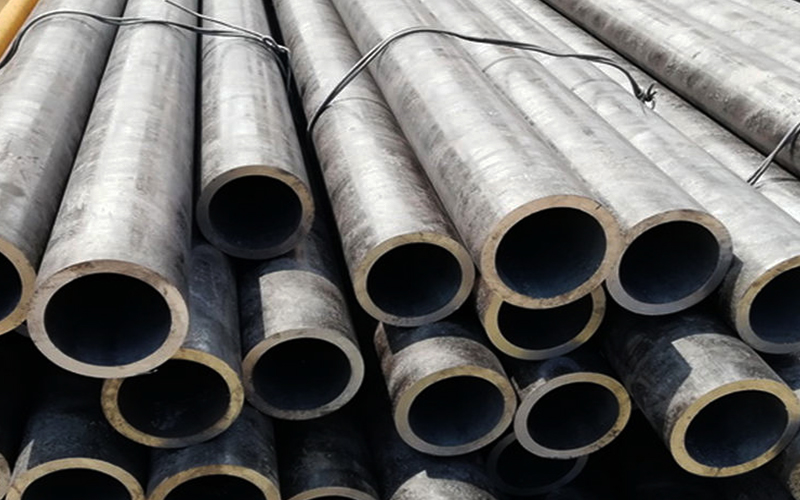

625 Inconel alloy pipe
  • 625 Inconel alloy pipe
  • 625 Inconel alloy pipe

Product introduction

Inconel 625 alloy is a nickel-ferrochrome nickel-base corrosion resistant and heat resistant alloy, which has the following characteristics:
Good resistance to reduction, oxidation, nitriding medium corrosion performance at room temperature and high temperature has good resistance to stress corrosion cracking performance good resistance to drying chlorine and hydrogen chloride gas corrosion performance below 650°C has high strength, good molding, easy to weld; In air, the maximum operating temperature is 1175°C
Outer Diameter6-2500mm, (3/8"-100")

Thickness0.3-150mm,(SCH10-XXS)

Length:2000mm, 2500mm, 3000mm, 5800mm,6000mm,12000mm,etc

Standard:ASTM,JIS, AISI, GB, DIN, EN

Certification:ISO, SGS





DIN/ENUNS NoGeneric termComposition
2.4816N06600INCONEL Alloy 600

72Ni-151Cr-8Fr-0.2Cu-0.02C

2.4851N06601INCONEL Alloy 60160Ni-22Cr-1.2Al-0.02C
2.4856N06625INCONEL Alloy 625

58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C

2.4856N06626INCONEL Alloy 625LCF

58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C

2.4606N06686INCONEL Alloy 686

57Ni-21Cr-16Mo-4W-0.01C

2.4642N06690INCONEL Alloy 690

58Ni-30Cr-9Fe-0.2Cu-0.02C

2.4668N07718INCONEL Alloy 718

52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C

2.4669N07750INCONEL Alloy 750

70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C


Material introduction

Alloy steel is steel that is alloyed with a variety of elements in total amounts between 1.0% and 50% by weight to improve its mechanical properties.

Alloy steels are broken down into two groups: low alloy steels and high alloy steels. The difference between the two is disputed. Smith and Hashemi define the difference at 4.0%, while Degarmo, et al., define it at 8.0%. Most commonly, the phrase "alloy steel" refers to low-alloy steels.

Strictly speaking, every steel is an alloy, but not all steels are called "alloy steels". The simplest steels are iron (Fe) alloyed with carbon (C) (about 0.1% to 1%, depending on type) and nothing else (excepting negligible traces via slight impurities); these are called carbon steels. However, the term "alloy steel" is the standard term referring to steels with other alloying elements added deliberately in addition to the carbon. Common alloyants include manganese (Mn) (the most common one), nickel (Ni), chromium (Cr), molybdenum (Mo), vanadium (V), silicon (Si), and boron (B). Less common alloyants include aluminium (Al), cobalt (Co), copper (Cu), cerium (Ce), niobium (Nb), titanium (Ti), tungsten (W), tin (Sn), zinc (Zn), lead (Pb), and zirconium (Zr).

The following is a range of improved properties in alloy steels (as compared to carbon steels): strength, hardness, toughness, wear resistance, corrosion resistance, hardenability, and hot hardness. To achieve some of these improved properties the metal may require heat treating.

Although alloy steels have been made for centuries, their metallurgy was not well understood until the advancing chemical science of the nineteenth century revealed their compositions. Alloy steels from earlier times were expensive luxuries made on the model of "secret recipes" and forged into such tools as knives and swords. Modern alloy steels of the machine age were developed as improved tool steels and as newly available stainless steels. Today alloy steels find uses in a wide array of applications, from everyday hand tools and flatware to highly demanding applications such as in the turbine blades of jet engines and in nuclear reactors.


Product testing

All of our products can be tested by professional third-party testing institutions, and we attach great importance to product quality and brand honor.

Certificate

All our products can be issued with the relevant material inspection certificate

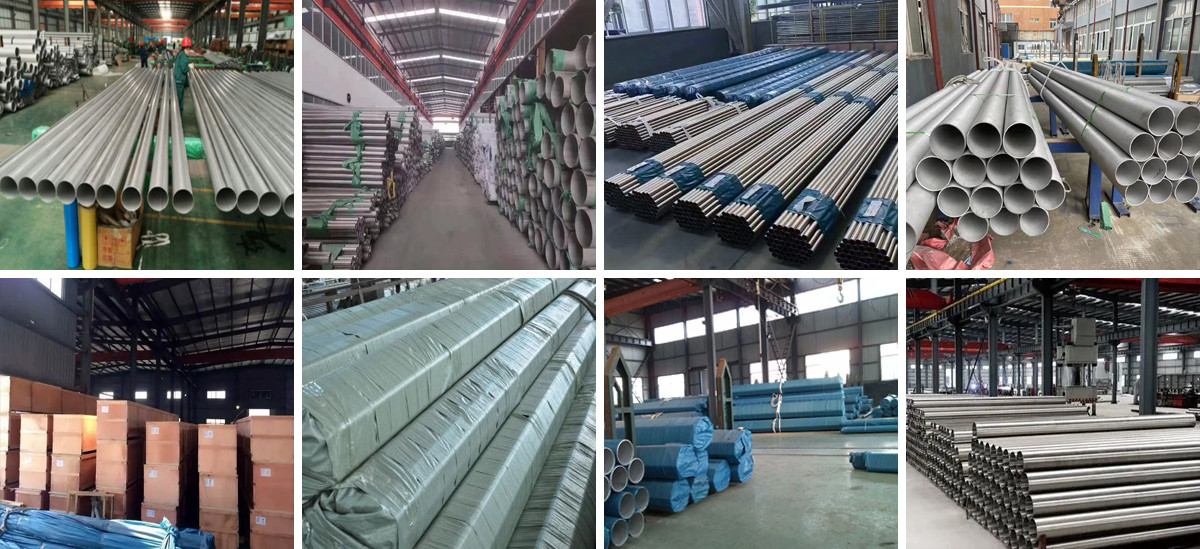

Warehouse & Packaging

Our factory is full of products, the production line is running well, we can supply regular goods immediately, but also can quickly customize the special specifications and materials of goods for customers. We also maintain good cooperation with major steel mills in China or overseas countries to ensure timely and uninterrupted supply of goods to customers.

alloy steel pipe.jpg

FAQ

Are you having any problems? You can always ask us about your problems, or you can browse the topics below to find what you are looking for.

Are you trading company or manufacturer ?

We are specialized in the production and processing of various carbon steel products, we can also accept custom products of other materials

How long is your delivery time?

It takes around 3-5 days for the regular models, and 7 to 10 working days for the special sizes and processing. It is based on the order quantity and requirement.

Do you provide samples ? Is it free or extra ?

We can provide samples to you for free, but the cost of express delivery will be borne by you.

Do you support customization ?

Yes, we have a full stock of products with a full range of models and a working production line. If you don't have what you want, we can customize it.

Do you accept third party testing ?

Yes, we fully accept the quality inspection of the third party inspection institutions. We attach great importance to the reliability of product quality

What are the advantages of your company?

First of all, we have an absolute advantage in price. Secondly, the quality of products is also strictly controlled.
