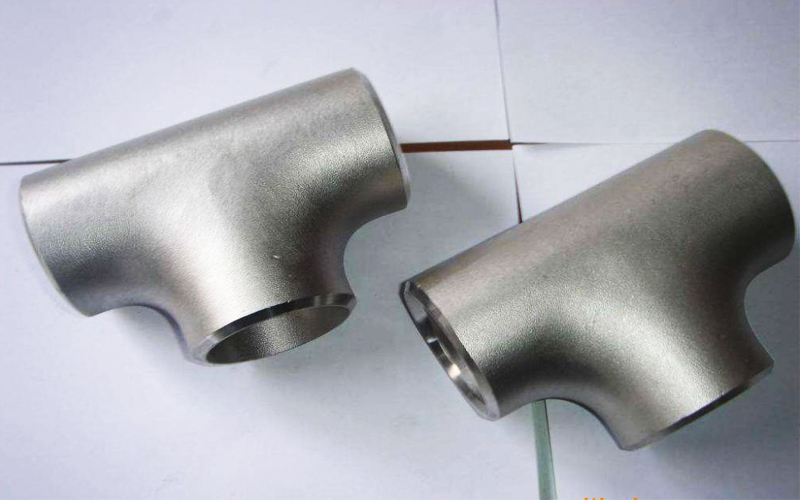

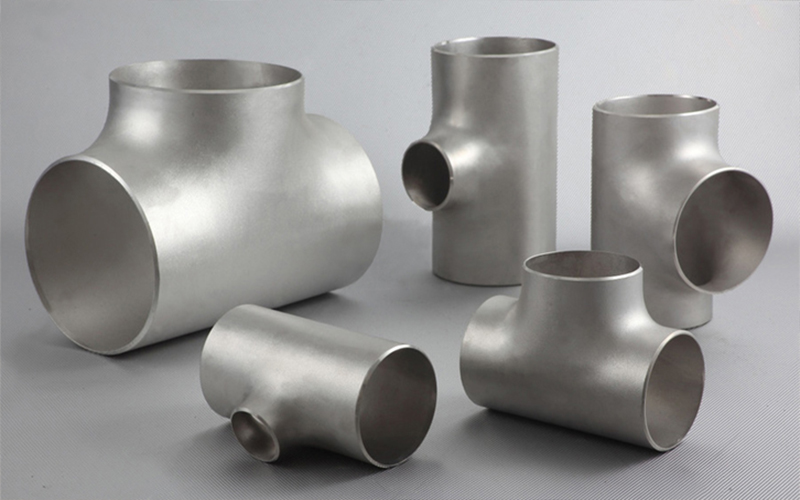

Stainless steel tee
  • Stainless steel tee
  • Stainless steel tee

Product introduction

Stainless steel tee is a kind of pipe fitting used at the branch of pipe. For the use of seamless pipe manufacturing tee, usually used by the process of hydraulic bulging and hot pressing forming two. The hydraulic bulging of stainless steel tee is a forming process of expanding out of branch pipe by axial compensation of metal material. The process is to use special hydraulic press, with three links within the tube billet diameter equal injection liquid, through the two horizontal side of the hydraulic cylinder synchronization of the motion of tube billet, billet after squeezed smaller volume, smaller volume of liquid with the tube billet inside the tube billet and pressure, when the stainless steel tee branch pipe bulge out to the pressure, Under the double action of liquid pressure in side cylinder and tube billet, the metal material flows along the inner cavity of mould and expands out the branch tube.
Product NameTee
Specifications10-1220mm， (3/8"-100") etc.
Thickness0.3-150mm，(SCH10-XXS)
Pressure PN0.5-PN500
Standard:ASTM，JIS, AISI, GB, DIN, EN
Surface:BA，2B，NO.1，NO.4，4K，HL，8K
Application:It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.
It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc.
Certification: ISO, SGS,BV
Technique:  Cold Rolled Hot Rolled
Edge:Mill Edge  Slit Edge
Quality:SGS Inspection
Grade410，430，201，304，304L，321，316，316L，317L，347H，309S，310S，904L，
（ASTM UNS） （EN）S32205，2507，254SMOS，32760，253MA，N08926，etc.
1.4301，1.4307，1.4541，1.4401，1.4404，1.4571，1.4438，1.4539，1.4547，
1.4529，1.4562，1.4410，1.4878，1.4845，1.4828，1.4876，2.4858，2.4819
Place of Origin:Tianjin, China (Mainland)
Supply Ability:5000 Ton/Tons per Month
Packaging Detailsin bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)   24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)   54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)    68CBM


Material introduction

Stainless steel, also known as inox or Corrosion Resistant (Stainless) Steel (CRES), is an alloy of iron that is resistant to rusting and corrosion.  It contains at least 10.5% chromium, usually nickel, and may also contain other elements, such as carbon, to obtain the desired properties.  Stainless steel's resistance to corrosion results from the chromium, which forms a passive film that can protect the material and self-heal in the presence of oxygen.

The alloy's properties, such as luster and resistance to corrosion, are useful in many applications.  Stainless steel can be rolled into sheets, plates, bars, wire, and tubing.  These can be used in cookware, cutlery, surgical instruments, major appliances, vehicles, construction material in large buildings, industrial equipment (e.g., in paper mills, chemical plants, water treatment), and storage tanks and tankers for chemicals and food products.

The biological cleanability of stainless steel is superior to both aluminium and copper, and comparable to glass.  Its cleanability, strength, and corrosion resistance have prompted the use of stainless steel in pharmaceutical and food processing plants.

Different types of stainless steel are labeled with an AISI three-digit number.  The ISO 15510 standard lists the chemical compositions of stainless steels of the specifications in existing ISO, ASTM, EN, JIS, and GB standards in a useful interchange table.

Product testing

All of our products can be tested by professional third-party testing institutions, and we attach great importance to product quality and brand honor.

Certificate

All our products can be issued with the relevant material inspection certificate

Warehouse & Packaging

Our factory is full of products, the production line is running well, we can supply regular goods immediately, but also can quickly customize the special specifications and materials of goods for customers. We also maintain good cooperation with major steel mills in China or overseas countries to ensure timely and uninterrupted supply of goods to customers.


FAQ

Are you having any problems? You can always ask us about your problems, or you can browse the topics below to find what you are looking for.

Are you trading company or manufacturer ?

We are specialized in the production and processing of various carbon steel products, we can also accept custom products of other materials

How long is your delivery time?

It takes around 3-5 days for the regular models, and 7 to 10 working days for the special sizes and processing. It is based on the order quantity and requirement.

Do you provide samples ? Is it free or extra ?

We can provide samples to you for free, but the cost of express delivery will be borne by you.

Do you support customization ?

Yes, we have a full stock of products with a full range of models and a working production line. If you don't have what you want, we can customize it.

Do you accept third party testing ?

Yes, we fully accept the quality inspection of the third party inspection institutions. We attach great importance to the reliability of product quality

What are the advantages of your company?

First of all, we have an absolute advantage in price. Secondly, the quality of products is also strictly controlled.
